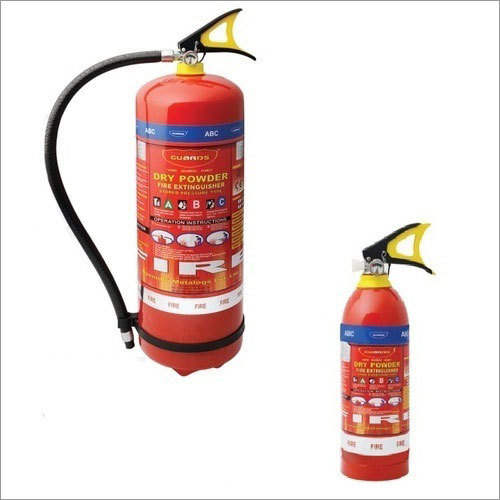

ABC Dry Powder Portable Fire Extinguishers

ABC Dry Powder Portable Fire Extinguishers
ABC Dry Powder Portable Fire Extinguishers
Product Code : 100
Product Description

In the last few years we have established ourselves as one of the most prominent manufacturers and suppliers of ABC Dry Powder Fire Extinguishers. These extinguishers are manufactured at our sound production unit using optimum quality carbon steel and stainless steel. Ideal for extinguish fire, these extinguishers are used in offices and commercial establishments. These ABC Dry Powder Fire Extinguishers are offered to clients in different sizes in order to fulfill their requirements.

Features:

  • Rust proof in nature
  • Rugged construction
  • Longer working life

Specifications:

CODE

NM-701

NM-702

NM-703

NM-704

NM-705

DESCRIPTION

ABC-1KG

ABC-2KG

ABC-4KG

ABC-6KG

ABC-9KG

BIS Specification

15683

15683

15683

15683

15683

Media Dry Powder

IS 14609

IS 14609

IS 14609

IS 14609

IS 14609

Discharge Time Sec.

6-8 Sec.

6-8 Sec.

6-8 Sec.

10-12 Sec.

12-18 Sec.

Jet length (Mtr)

Above 2 Mtrs

Above 2 Mtrs

Above 2 Mtrs

Above 2 Mtrs

Above 2 Mtrs

Test Pres. Kgf/Cm2

35

35

35

35

35

Rating

IA,8B,C

2A,13B,C

3A,21B,C

3A,34B,C

4A,55B,C

  • Capacity: 1-9 kg
  • Temperature Range: -10 to +55oC
  • Hydraulic Test Pressure: 35 kgf/cm2
Cylinder Material: Carbon steel/Stainless steel
Color: Red
Outside Painting: Spray, Anti-corrosion
Cylinder Processing: Welded, Seamless
Fire extinguisher type: ABC dry powder
Working pressure: 18Bar
Test Pressure: 27Bar
Hydrostatic test pressure: 2.1MPa.
Size/Capacity: Weigh From 1 to 25kg
Accessories Item: Hose, nozzle, handing clamp, quick valve
Usage: Use in schools, offices, hotels, factories, hospitals, oil pump houses, filling stations, shopping malls, combustible places
Volumes: NA
Style: Portable
Technique: Smooth welding
Function: Put out fire
Caution: Protect from sunlight and do not expose to temperature over +50
How to use: Pull the pin
Aim the nozzle or hose at the base of the fire from the recommended safe distance
Squeeze the operating lever to discharge the fire extinguisher agent
Starting at the recommended distance, Sweep the nozzle or hose from the fire diminishes. Also Watch the area in case of re-ignition
Application: Fire Fighting Equipment & Accessories
